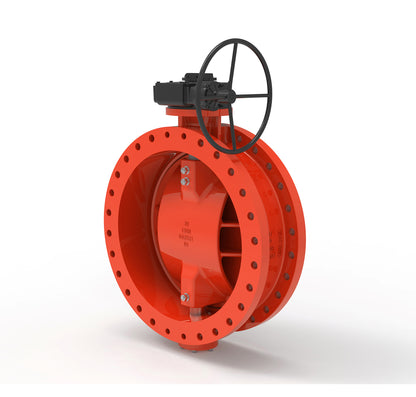

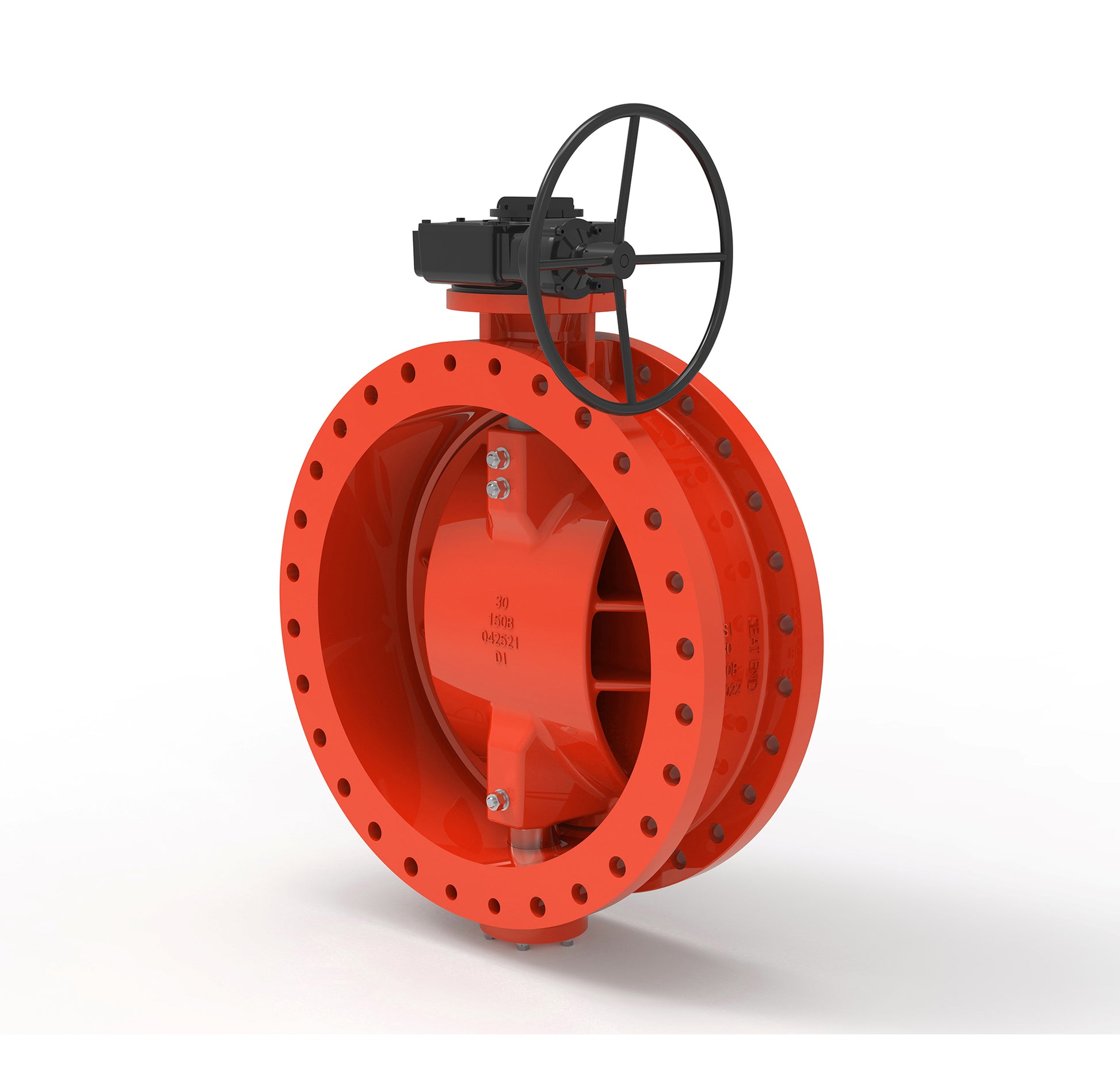

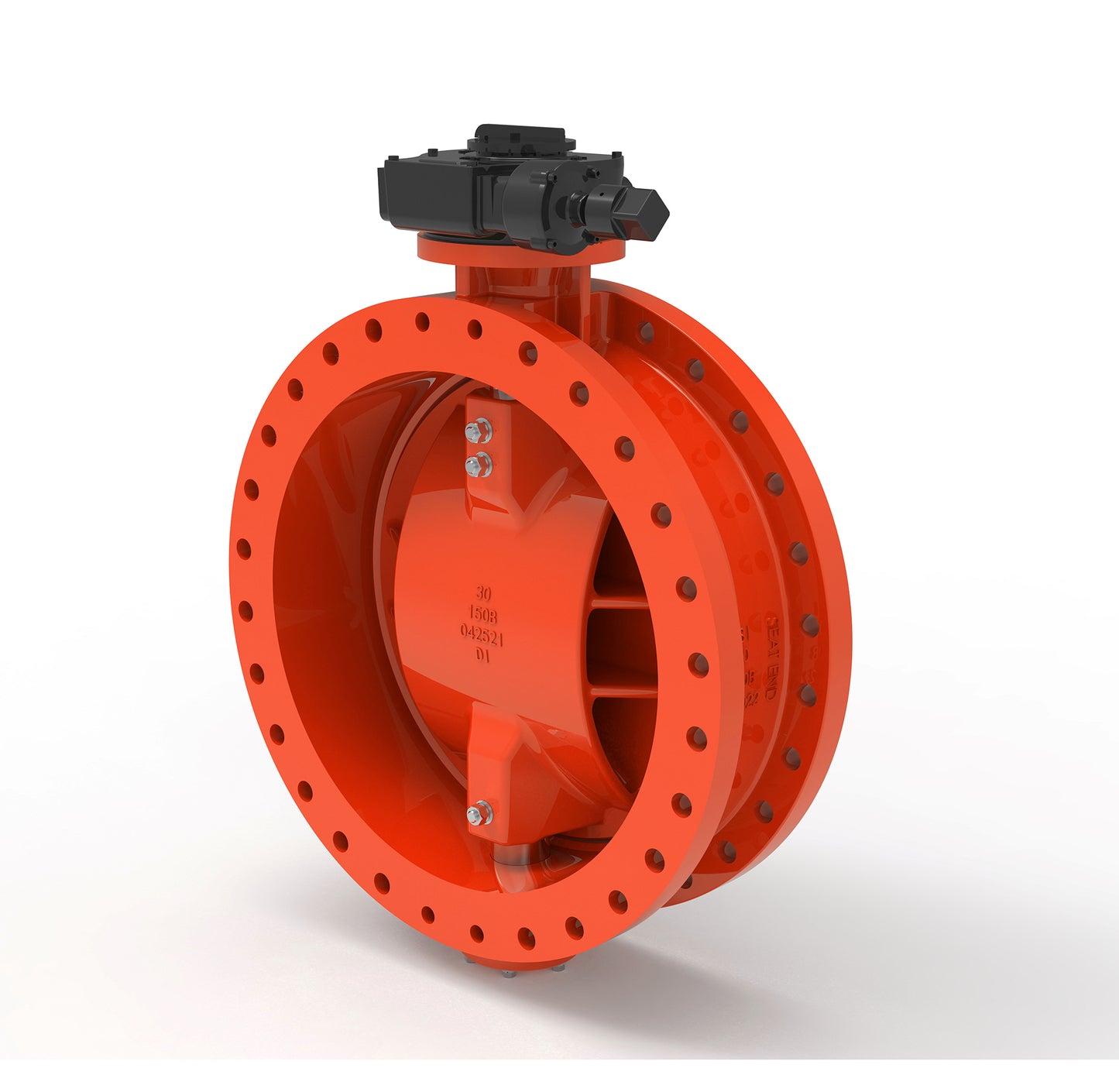

AWWA C504 Butterfly Valve FLG x FLG (JKBVFF)

Overview:

The AWWA C504 Butterfly Valve FLG x FLG (JKBVFF) is a high-performance valve designed for use in municipal, industrial, and commercial water systems. Built to meet rigorous standards, this valve ensures efficient flow control and long-lasting durability.

Key Features:

• Size Range: 24" - 48"
• Material: High-quality materials with Fusion Bonded Epoxy Coating in accordance with ANSI / AWWA C550
• Design Standards: AWWA C504
• Pressure Rating: 150 PSI
• Connection Type: Flanged to ASME B16.1 Class 125
• Operating Temperature: 32°F - 176°F
• Special Features: Resistant to corrosion with durable epoxy coating
• Applications: Widely used in municipal water systems, industrial applications, and commercial water pipelines for reliable flow control and system integrity

Download Specification Data:

View Specification Data
