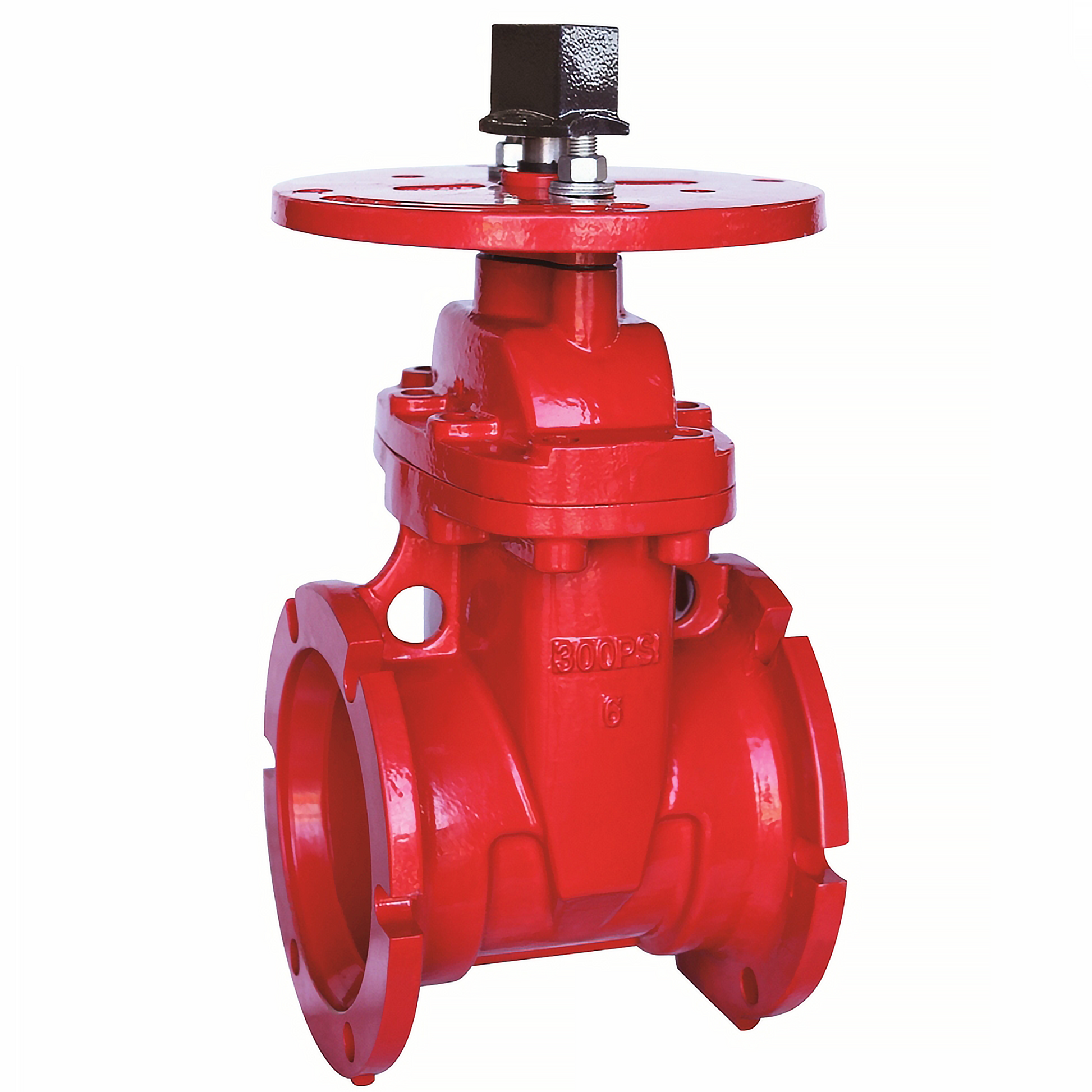

AWWA C515 NRS MJ x MJ Gate Valve With Post Plate (JKDZ45MPF)

Overview:

The AWWA C515 NRS MJ x MJ Gate Valve with Post Plate (JKDZ45MPF) is engineered for use in fire protection and high-pressure water distribution systems. Featuring a non-rising stem (NRS) design and post plate, this valve provides reliable flow control with mechanical joint (MJ) connections for ease of installation and long-term durability.

Key Features:

• Size Range: 3" - 12"
• Material: High-quality materials with Fusion Bonded Epoxy Coating in accordance with ANSI / AWWA C550
• Certification: Approved by UL, FM, and NSF (Size 5" is NSF/ANSI 372 listed)
• Design Standards: Mechanical Joint (MJ) to ANSI/AWWA C153/A21.53 and ANSI/AWWA C110/A21.10
• Pressure Rating: 300 PSI
• Connection Type: Mechanical Joint (MJ)
• Operating Temperature: 32℉ - 176℉
• Special Features: Equipped with a post plate for effective system control in fire protection applications
• Applications: Ideal for fire protection systems and high-pressure water distribution networks

Download Specification Data:

View Specification Data
