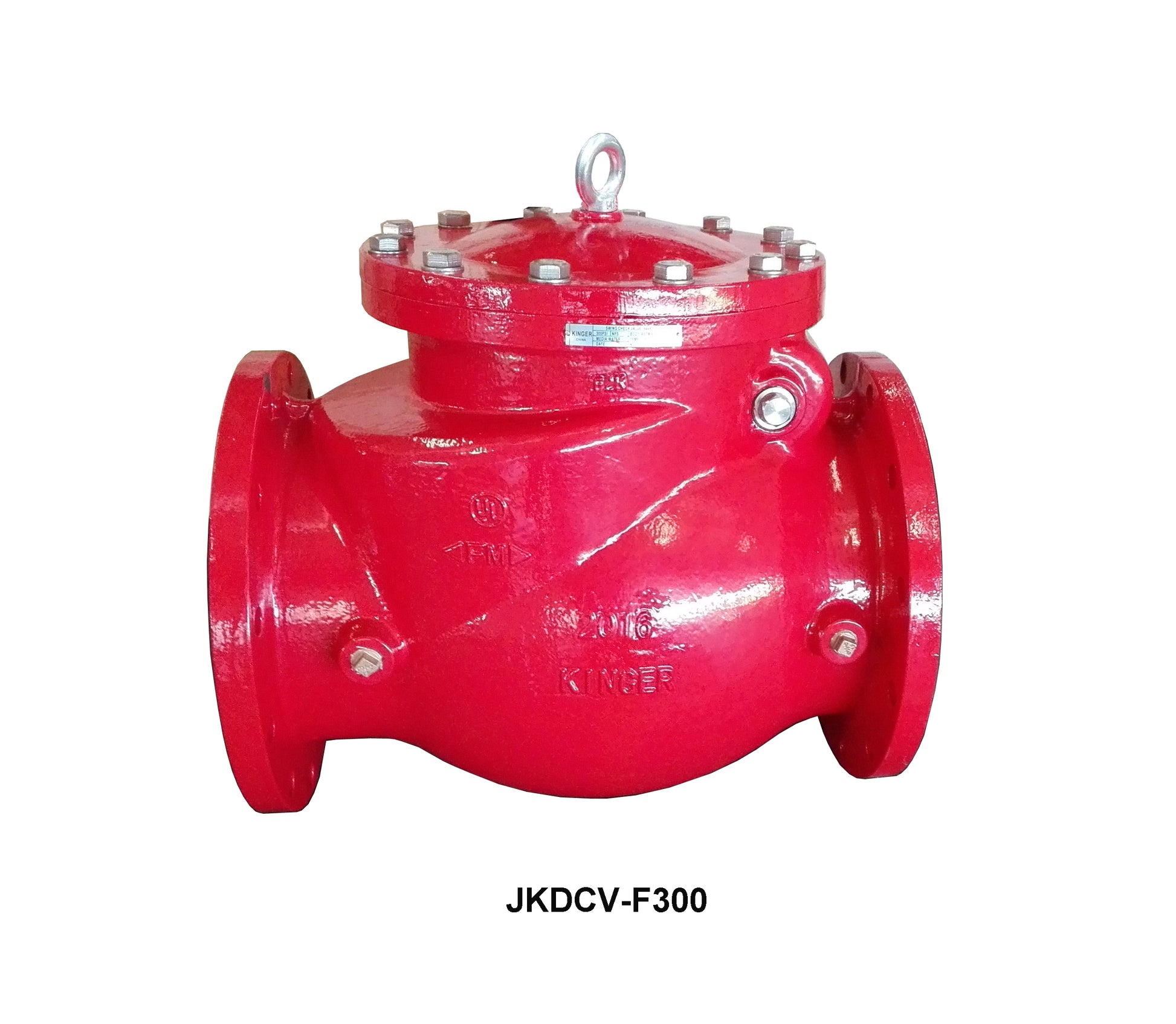

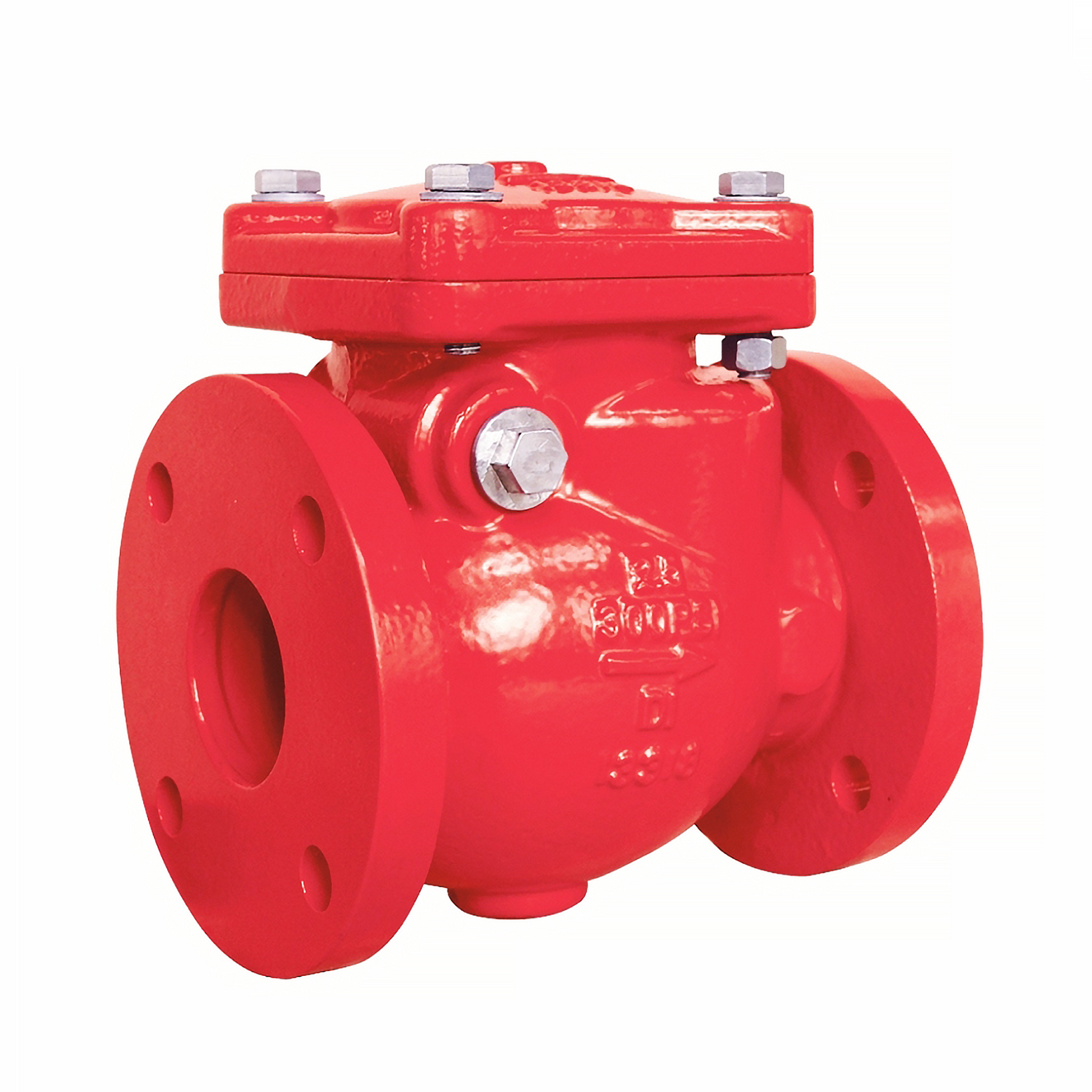

FLG Resilient Swing Check Valve (JKDCV-F300/JKDCV-350F)

Overview:

The FLG Resilient Swing Check Valve (JKDCV-F300/JKDCV-350F) is engineered for dependable backflow prevention in fire protection and water systems. Featuring a resilient-seated design, this valve provides reliable sealing and long-lasting performance. The valve is approved by UL, FM, and NSF, ensuring compliance with safety and performance standards.

Key Features:

• Size Range: 2" - 12"
• Material: High-quality materials with Fusion Bonded Epoxy Coating in accordance with ANSI / AWWA C550
• Certification: Approved by UL, FM, and NSF for safety and performance
• Design Standards: Flanged to ASME B16.1 Class 125 / ASME B16.42 Class 150
• Pressure Rating: 300 PSI (up to 350 PSI)
• Operating Temperature: 32℉ - 176℉
• Applications: Suitable for fire protection systems, water distribution, and industrial applications requiring reliable backflow prevention

Download Specification Data:

View Specification Data
