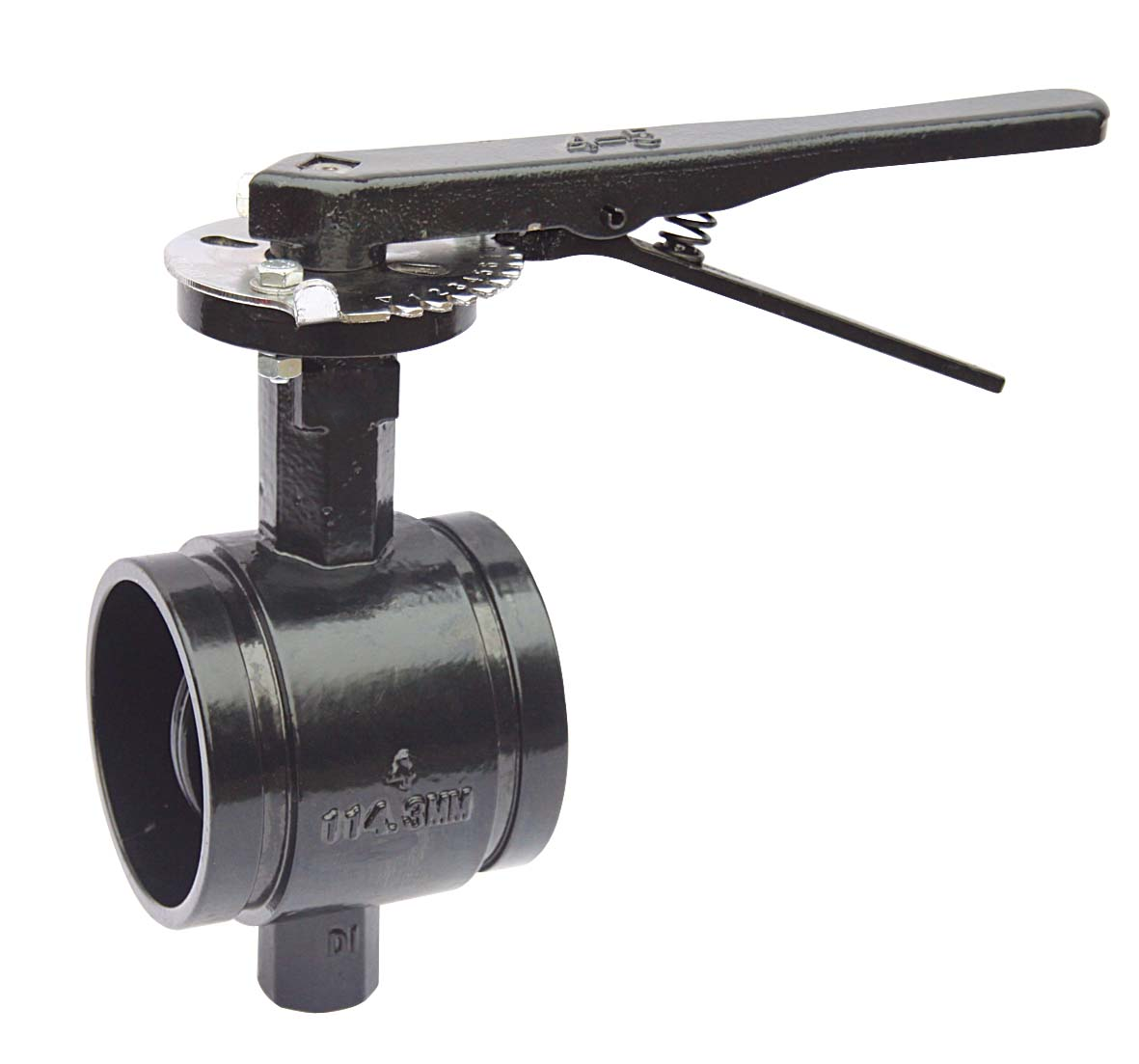

Grooved Butterfly with Lever Handle (JMD81X4-BL)

Overview:

The Grooved Butterfly Valve with Lever Handle (JMD81X4-BL) is a versatile flow control valve designed for use in water distribution and fire protection systems. Featuring a lever handle for easy manual operation, this valve provides smooth and efficient flow control in high-pressure environments. The grooved connection ensures quick and secure installation, making it ideal for various applications.

Key Features:

• Design Standard: MSS SP-67
• Connection Type: Grooved to AWWA C606
• Top Flange Standard: ISO 5211
• Stem Operation: Driven by keys, parallel or diagonal square, or flat head
• Pressure Rating: 300 PSI
• Operating Temperature: 32℉ - 176℉
• Coating: Fusion Bonded Epoxy Coating in accordance with ANSI / AWWA C550 (or optional painting upon request)
• Applications: Ideal for water distribution and fire protection systems, offering dependable flow control in high-pressure environments. The grooved connection allows for fast installation and maintenance.

Download Specification Data:

View Specification Data
