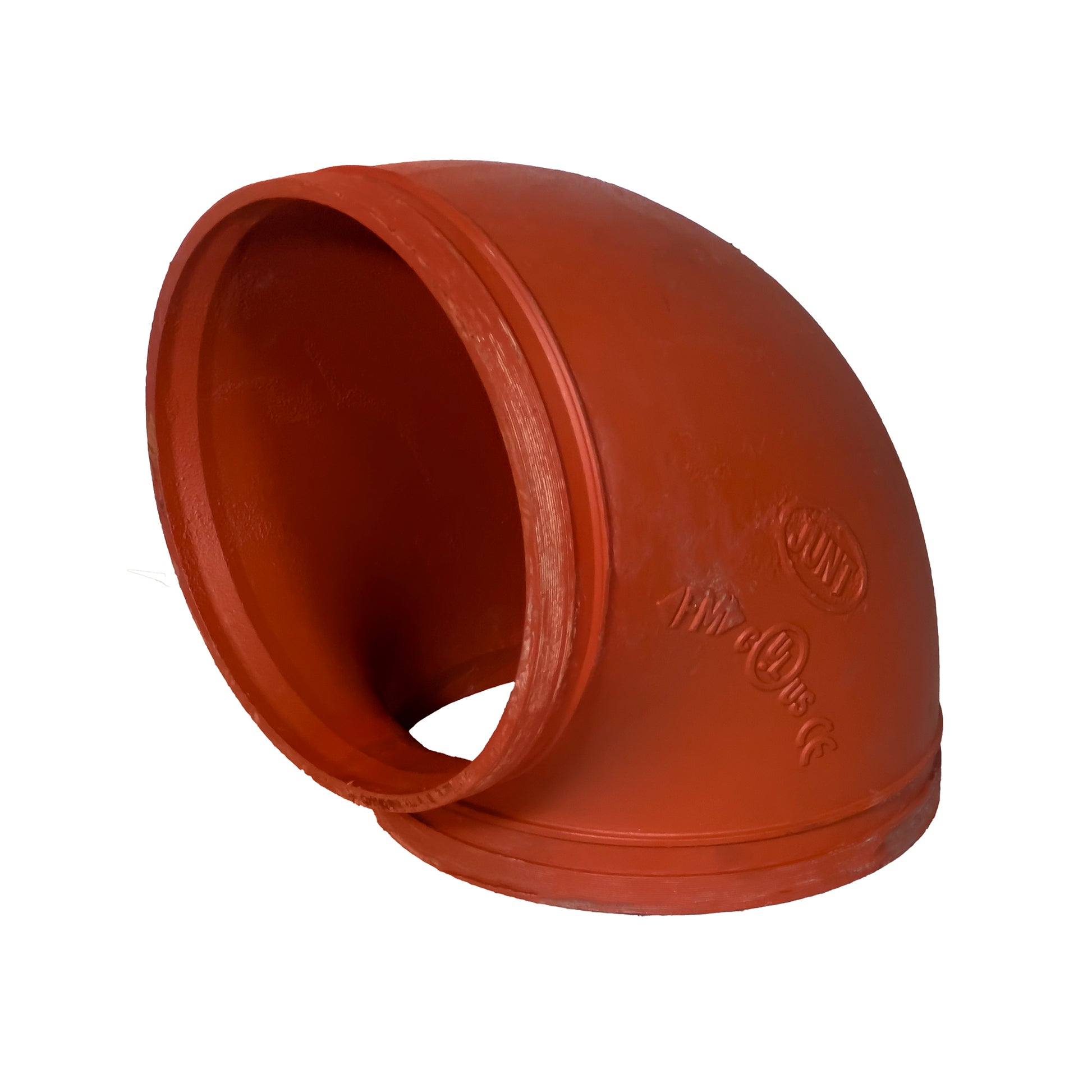

Groove Elbow 90 Short ( ELBS )

Overview:

The Groove Elbow 90 Short (ELBS) is a compact, high-performance ductile iron fitting designed to change the direction of pipe flow by 90 degrees in grooved piping systems. Engineered for both wet and dry systems, the ELBS is ideal for fire protection, HVAC, plumbing, and industrial applications. Its short radius design makes it perfect for tight spaces while maintaining flow efficiency.

Key Features:

• Available Sizes: 1.25” to 10”
• Material: Durable ductile iron for long-lasting performance
• Design Standard: ANSI/AWWA C606 for grooved-end fittings
• Coating: Fusion bonded epoxy coating for superior corrosion resistance
• Pressure Rating: Rated up to 500 PSI for high-pressure systems
• Installation: Quick and easy installation with grooved ends, compatible with standard grooved coupling systems
• Applications: Ideal for fire protection, HVAC, plumbing, and industrial systems, especially in compact spaces

Download Specification Data:

View Specification Data
