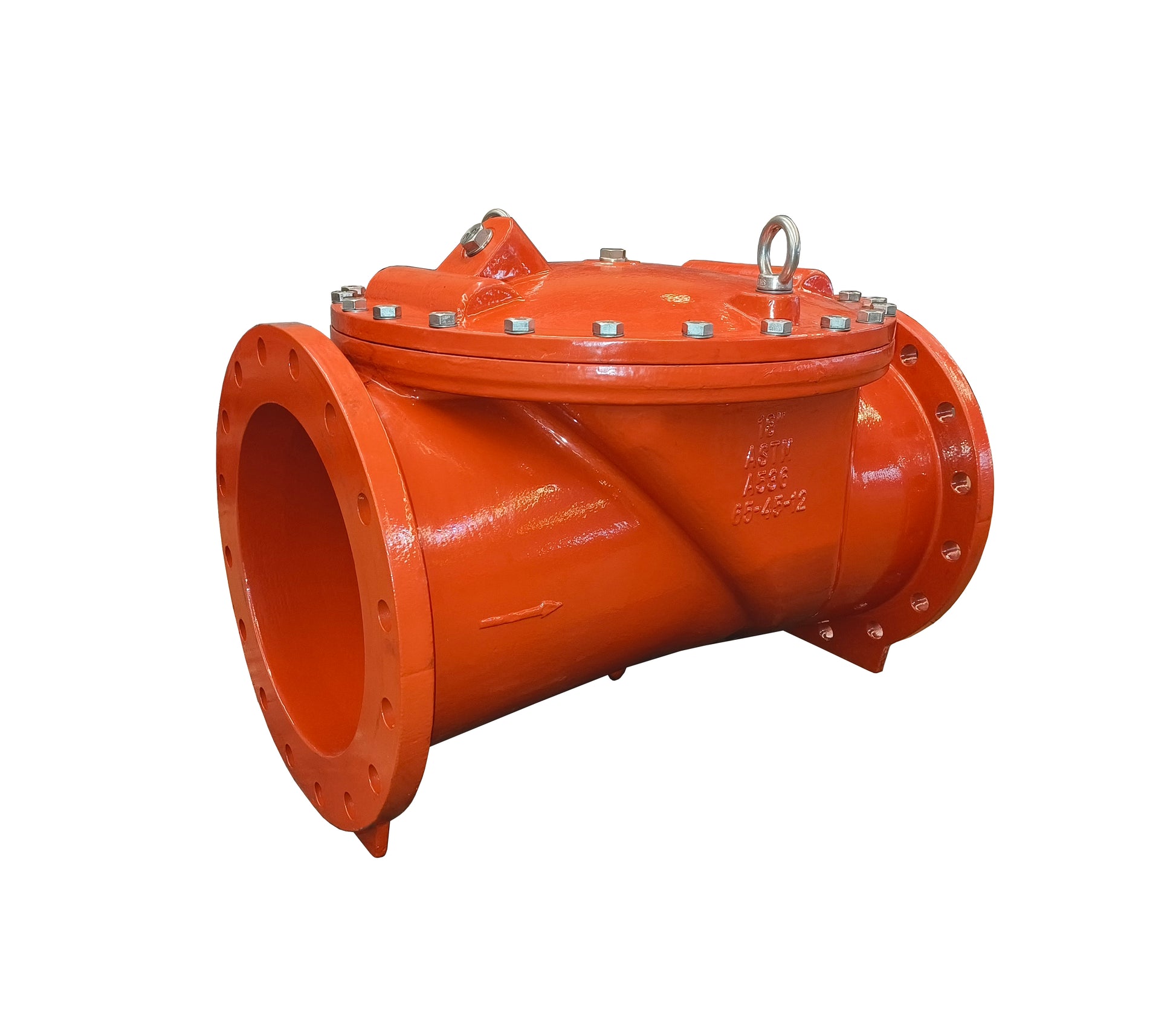

AWWA C508 Flange Check Valve 45Degree Rubber Disc with Anti Slip Pin(JKDC45D)

Overview:

The AWWA C508 Flange Check Valve 45Degree Rubber Disc with Anti Slip Pin(JKDC45D) is engineered for dependable backflow prevention in fire protection and water systems. Featuring a resilient-seated design, this valve provides reliable sealing and long-lasting performance. The valve is approved by UL, FM, and NSF, ensuring compliance with safety and performance standards.

Key Features:

• Size Range: 2" - 24"
• Material: High-quality materials with Fusion Bonded Epoxy Coating in accordance with ANSI / AWWA C550
• Certification: Approved by UL, FM, and NSF for safety and performance
• Design Standards: Flanged to ASME B16.1 Class 125/ASME B16.42 CL150
• Pressure Rating: 250 PSI
• Operating Temperature: 32℉ - 176℉
• Applications: Suitable for fire protection systems, water distribution, and industrial applications requiring reliable backflow prevention
