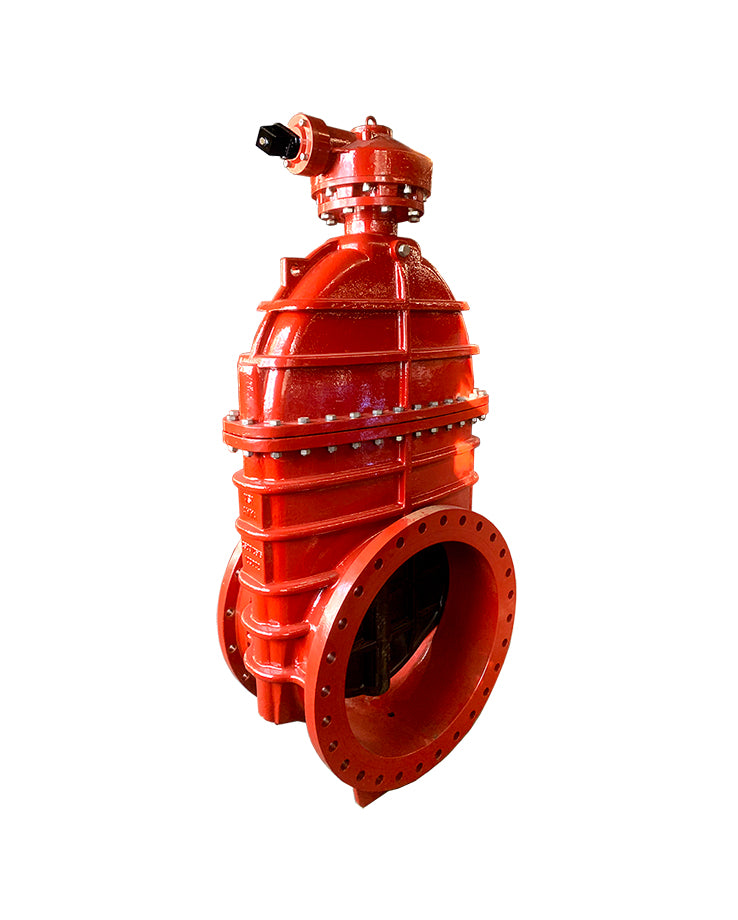

AWWA C509 NRS FLG x MJ Gate Valve with Cap Nut & Bevel Gearbox (JH004X-G)

Overview:

The AWWA C509 NRS FLG x MJ Gate Valve with Cap Nut & Bevel Gearbox (JH004X-G) is engineered for high-performance applications in municipal, industrial, and commercial water systems. With its non-rising stem (NRS) design and bevel gearbox, it provides exceptional flow control and durability in even the most demanding environments.

Key Features:

• Size Range: 14" - 48"
• Material: High-quality materials with Fusion Bonded Epoxy Coating in accordance with ANSI / AWWA C550
• Design Standards: Flanged to ASME B16.1 Class 125, Mechanical Joint to ANSI/ASME C153/A21.53, and ANSI/AWWA C110/A21.10
• Pressure Rating: 250 PSI
• Connection Type: Flanged to Mechanical Joint (MJ)
• Operating Temperature: 32℉ - 176℉
• Special Features: Equipped with cap nut and bevel gearbox for enhanced control and flexibility
• Applications: Ideal for large-scale water distribution systems, industrial pipelines, and municipal water infrastructure requiring precise flow control and reliability

Download Specification Data:

View Specification Data
