AWWA C509 NRS FLG x FLG Gate Valve (JHZ45XQ)

Overview:

The AWWA C509 NRS FLG x FLG Gate Valve (JHZ45XQ) is designed for high-performance flow control in municipal, industrial, and commercial water systems. Its non-rising stem (NRS) design ensures reliable operation, even in restricted space applications, while maintaining durability under demanding conditions.

Key Features:

• Size Range: 2" - 24"
• Material: High-quality materials with Fusion Bonded Epoxy Coating in accordance with ANSI / AWWA C550
• Design Standards: Complies with ASME B16.1 Class 125
• Pressure Rating: 250 PSI
• Connection Type: Flanged to ASME B16.1 Class 125
• Operating Temperature: 32℉ - 176℉

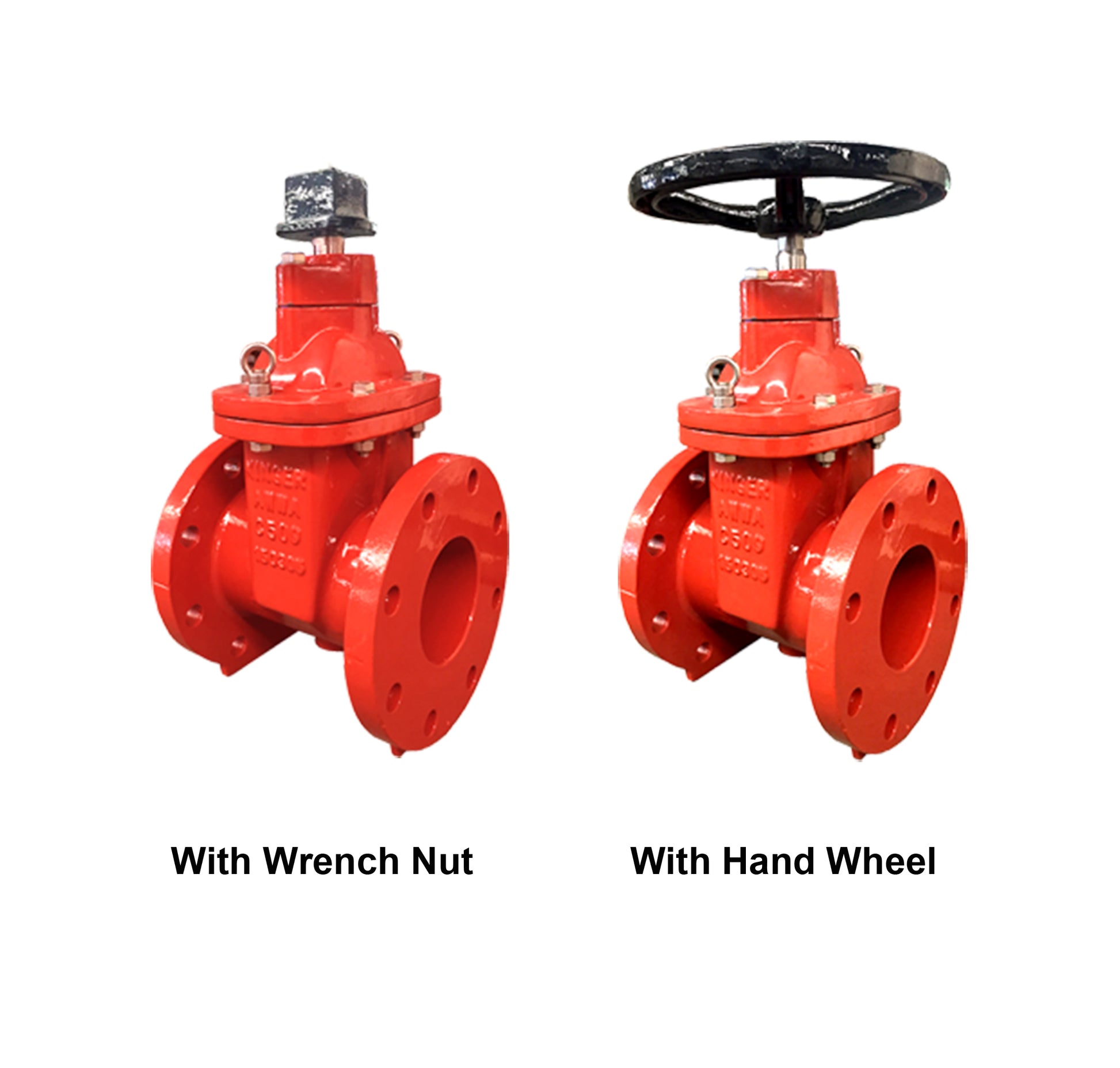

• Special Features: Available with operating nut and handwheel options for flexibility in operation
• Applications: Suitable for water distribution systems, wastewater management, and various industrial water control applications

Download Specification Data:

View Specification Data
