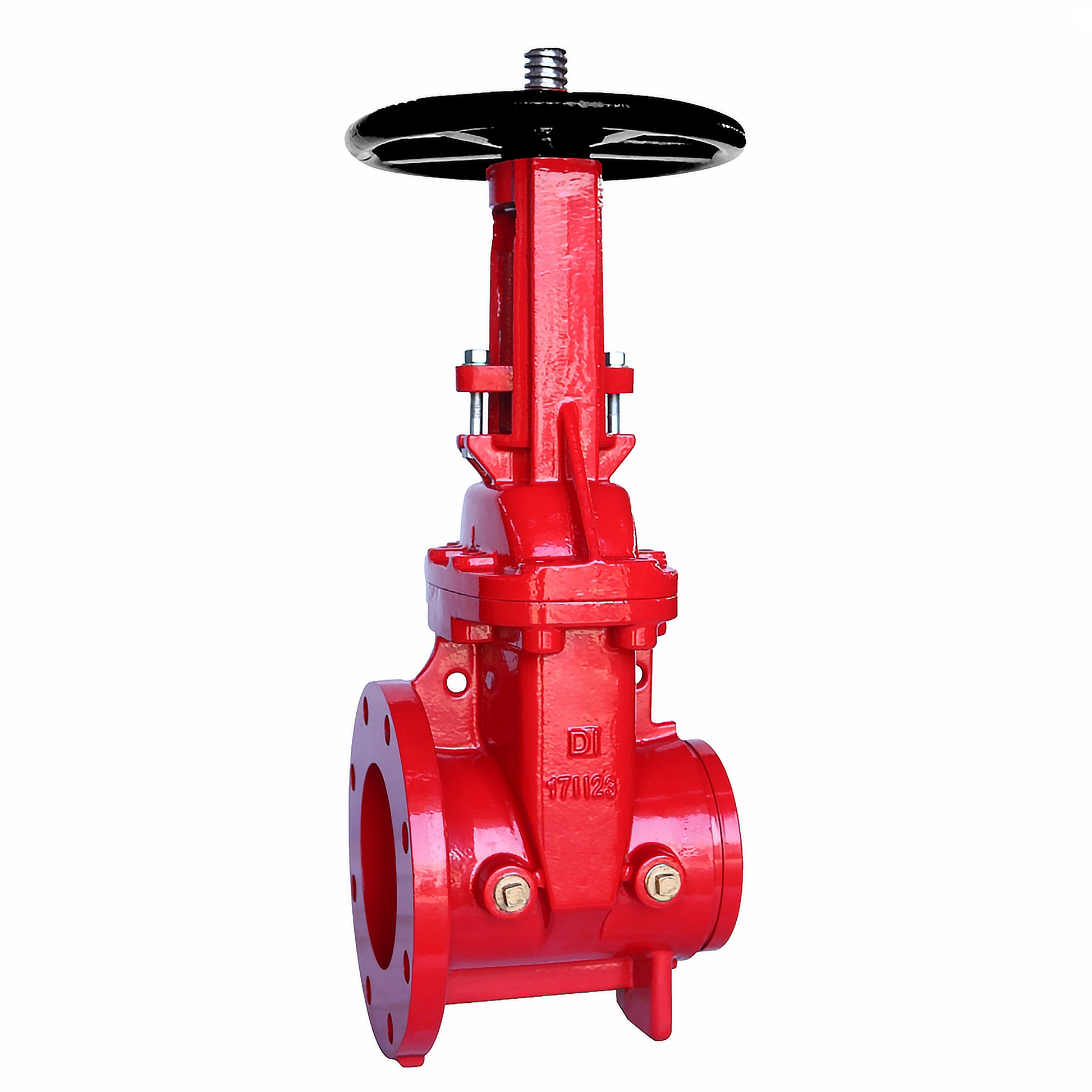

AWWA C515 OS&Y FLG x GRVD Gate Valve (JKDZ481GFR/JKDZ481-300A)

Overview:

The AWWA C515 OS&Y FLG x GRVD Gate Valve (JKDZ481GFR/JKDZ481-300A) is designed for use in fire protection systems and high-pressure water distribution networks. Featuring an outside screw & yoke (OS&Y) design, this valve provides clear visibility of the valve’s open or closed position. With both flanged and grooved connections, it offers versatile installation options in demanding environments.

Key Features:

• Size Range: 2.5" - 12"
• Material: High-quality materials with Fusion Bonded Epoxy Coating in accordance with ANSI / AWWA C550
• Certification: Approved by UL, FM, and NSF for safety and performance
• Design Standards: Flanged to ASME B16.1 Class 125 / ASME B16.42 Class 150; Grooved to AWWA C606 / ISO 6182
• Pressure Rating: 300 PSI (200 PSI and 250 PSI available upon request)
• Connection Type: Flanged and Grooved (GRVD)
• Operating Temperature: 32℉ - 176℉
• Applications: Ideal for fire protection systems, high-pressure water distribution, and industrial flow control systems
