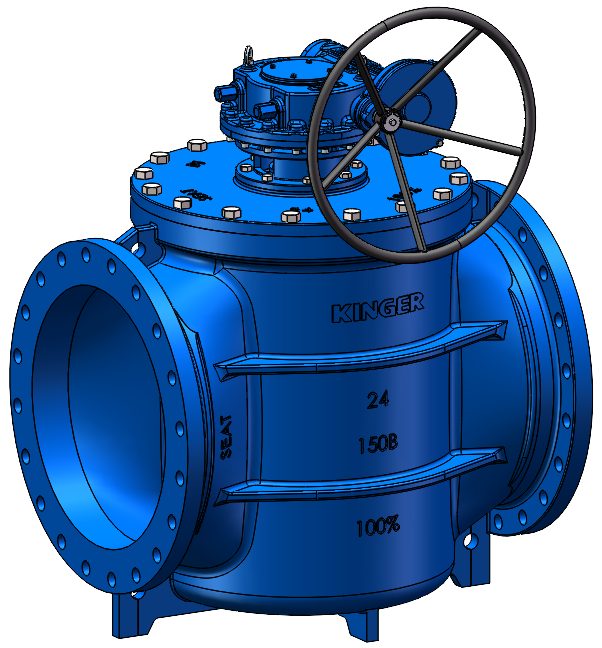

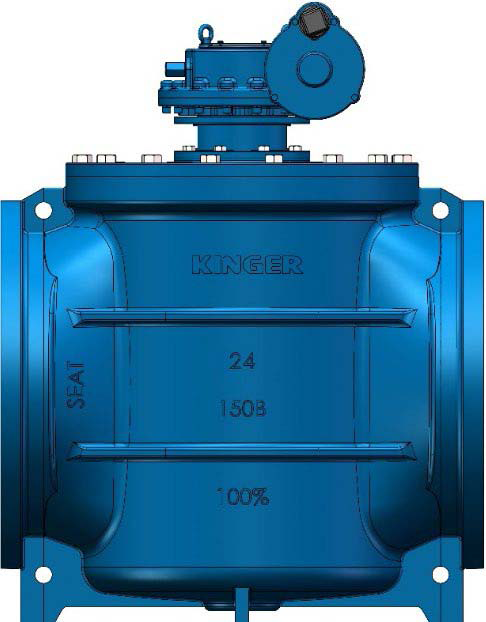

AWWA C517 Eccentric Plug Valve FLG x FLG Ends With Gearbox (KPL150-GH)

Overview:

The AWWA C517 Eccentric Plug Valve FLG x FLG Ends With Gearbox (KPL150-GH) is designed for reliable flow control in water and wastewater systems. Its eccentric plug design minimizes wear and ensures a tight shutoff. The valve comes equipped with a gearbox, offering smooth operation with either a nut or handwheel configuration for ease of use in demanding applications.

Key Features:

• Size Range: 14" - 24"
• Material: High-quality materials with Fusion Bonded Epoxy Coating in accordance with ANSI / AWWA C550
• Design Standards: Complies with AWWA C517
• Pressure Rating: 150 PSI
• Connection Type: Flanged to ANSI B16.1 Class 125
• Operating Temperature: 32°F - 176°F
• Special Features: Available with a gearbox, configured with either a nut or handwheel for smooth operation
• Applications: Ideal for water and wastewater systems, ensuring dependable flow control and long-lasting performance

Download Specification Data:

View Specification Data
